產品型號 |

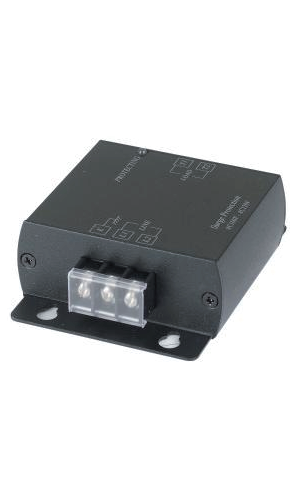

SP001P-AC110 |
|
|
Nominal peak voltage |
Wire |
>150V |
|
Wire~grounding |
>150V |
|
|
Surge Current Capacity |
6000A (8x20uS) |
|
|
Surge Voltage Capacity |
6000V (1.2uS x 50 uS) |
|
|
Response time |
<0.1uS |
|
|
Leakage current |
Wire |
<1mA (at150VAC) |
|
Wire~grounding |
<1mA (at150VAC) |
|
|
Max. Load Current |
8A (Max) |
|
|
環境規格 |
工作溫度：0 ~ 55℃，儲存溫度：-20 ~ 85℃ 相對濕度：最高 95% |
|
|
材質 |
鐵 |
|
|
尺寸 mm |
67 x 87 x 28.5 |
|
|
重量 g |
140 |
|
